GR Series 4 Flute Round Nose End Mill

GR heavy cutter series is suitable for processing HRC≤68°steel parts, ultra-high hardness die steel, special tools for quenching materials, special treatment of cutting edges, special cutting and helix angle, and high speed processing of workpieces with low hardness Milling, high speed, high feed, large tool capacity, using Sumitomo special grades, OSG special coating or Balzas special coating, the use efficiency is greatly improved, this tool provides material certification!

+86-519-88996291

HOTLINE

PHOTO(PDF)

Product parameters

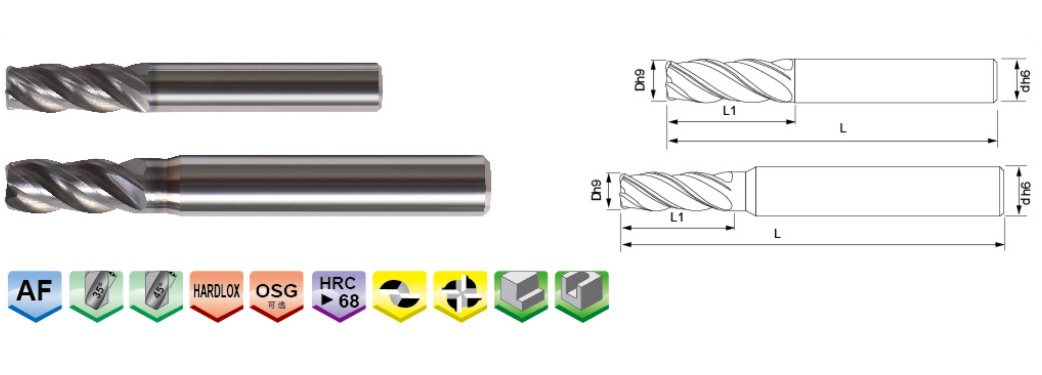

Flute Diameter(d)	Flute Length(l)	Shank Diameter(D)	Overall Length(L)	In Stock
D1	3	D4	50	•
D1.5	4.5	D4	50	•
02	6	D4	50	•
D3	9	D4	50	•
D4	10	D4	50	•
D5	13	D5	50	•
D6	15	D6	50	•
D8	20	D8	60	•
D10	25	D10	75	•
D12	30	D12	75	•
D14	40	D14	100	•
D16	45	D16	100	•
D18	45	D18	100	•
D20	45	D20	100	•
D4	16	D4	75	•
D6	24	D6	75	•
D8	30	D8	75	•
D10	40	D10	100	•
D12	45	D12	100	•
